| AMB
Tube-Buffered Direct Injection Box:

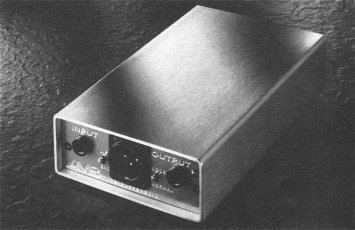

The AMB Tube-Buffered D.I. Box extracts all the musical details of musical interfaces without degrading the sound. This can only be achieved by providing a very high input impedance to avoid any loading of the instrument pickups. A vacuum tube input stage achieves this high input impedance, and handles very high input levels without any compromise in sound quality. The outstanding Jensen JT-DB-E transformer provides a low impedance, balanced and ground-isolated output that is ideal for sending the signal to the mic preamp input of a console or, ideally, the M-1 mic preamp. Manufactured by AMB/Acoustic Consulting, Germany.

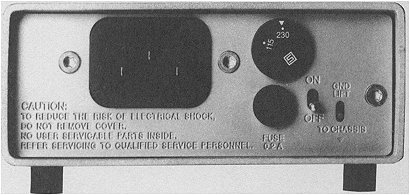

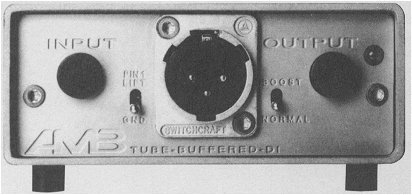

Features: • Extremely high input impedance avoids signal degradation caused by excessive loading that is common in other designs. • Buffered output jack allows for cable runs of 10 meters without losing high frequency information. • Boost circuit increases signal sent to output transformer by 15dB for use with low output instruments or for distortion effects. • Unity gain circuit feeds a low distortion unity gain signal to the output transformer providing the best possible sound quality. • Two ground lift switches, one for complete isolation of post DI equipment and the other separates DI audio and chassis grounds. • Road worthy construction, 2mm thick brushed stainless steel enclosure, 1.5mm thick end panels, internal parts mounted securely.
Specifications:
|
